Product Overview

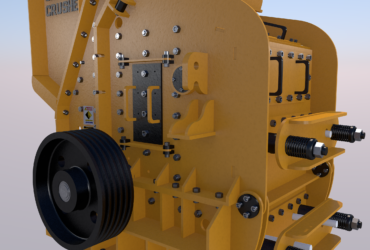

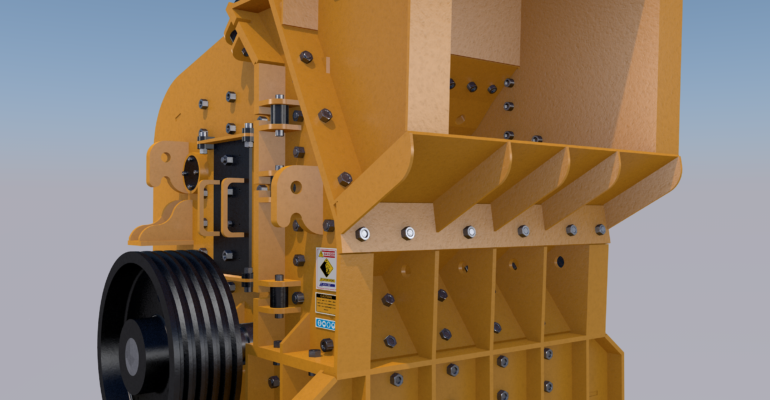

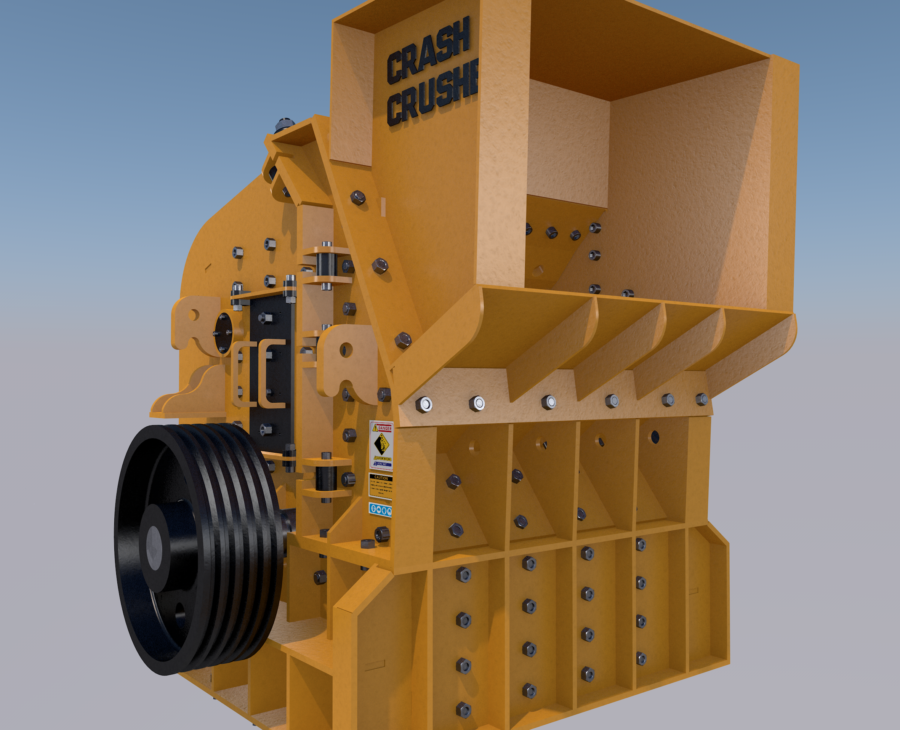

Crash Crusher Impact Crushers are engineered to deliver high reduction ratios and superior product shape in secondary and tertiary crushing applications.
By utilizing the high-speed impact crushing principle, these crushers produce high-quality aggregates with consistent size and excellent cubic shape, making them ideal for quarrying and aggregate production.
One dedicated point of contact for everything
24/7 access to our global network
One straightforward contract framework
One easily manageable service cost structure
One consistent level of service quality
More ISO certifi cates than any other service.
Why Choose Crash Crusher Impact Crushers?
- High reduction ratio for efficient crushing
- Excellent final product shape and uniform size
- Heavy-duty design for continuous operation
- Adjustable curtains for precise product control
- Easy maintenance and quick replacement of blow bars
- Optimized power consumption with high output
Working Principle
The Impact Crusher operates with a high-speed rotor fitted with blow bars, which hurls material against impact plates (curtains), causing it to fracture into smaller, controlled sizes.
This crushing method ensures:
- Accurate control of final product size
- High crushing efficiency
- Stable and reliable operation
Applications
- Quarrying operations
- Secondary and tertiary crushing
- Limestone, Dolomite, Basalt
- High-quality aggregate production
Key Features
- Reinforced steel housing for impact resistance
- Dynamically balanced rotor for smooth operation
- High wear-resistant blow bars
- Adjustable curtain system for flexible output sizes
- Reduced vibration and extended service life
Technical Specification
| Model | Rotor Size | Max Feeding Size (mm) | Outlet Size (mm) | Capacity (t/h) | Power (kw) |
|---|---|---|---|---|---|
| IC8060 | 800 x 600 | 150 | 50-0 | 20-60 | 90 |
| IC1010 | 1000 x 1000 | 200 | 0-60 | 75-160 | 132 |
| IC1313 | 1300 x 1300 | 250 | 0-70 | 200*350 | 160 |
| IC1513 | 1500 x 1300 | 300 | 0-80 | 250-500 | 250 |
